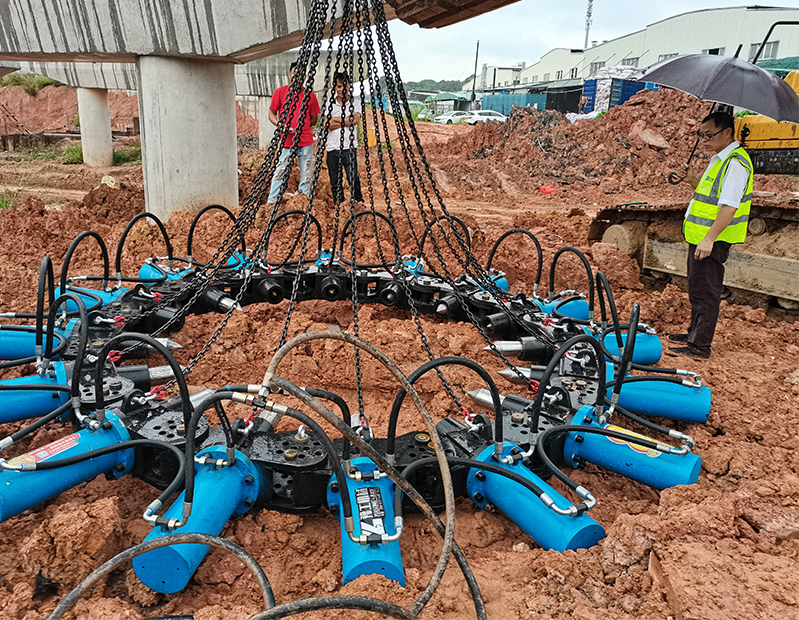

The pile breaker is specifically designed for the rapid, safe, and precise cutting of pile heads during foundation construction.

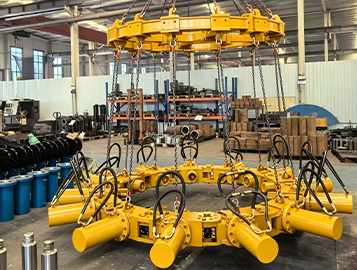

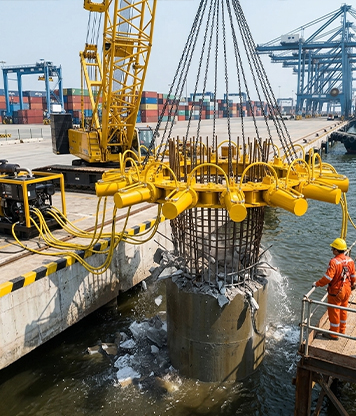

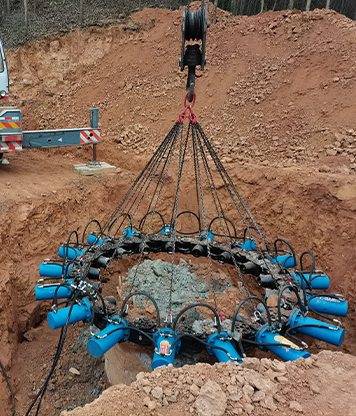

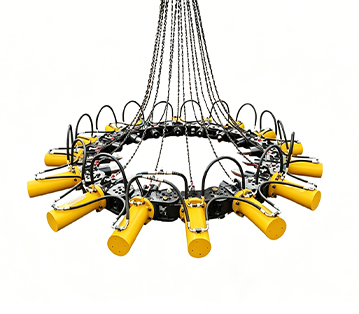

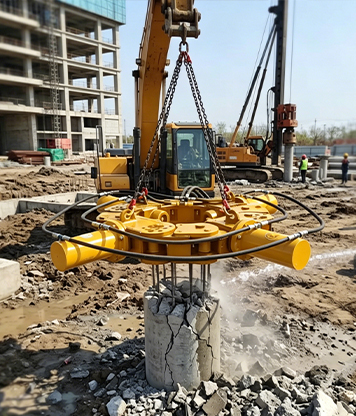

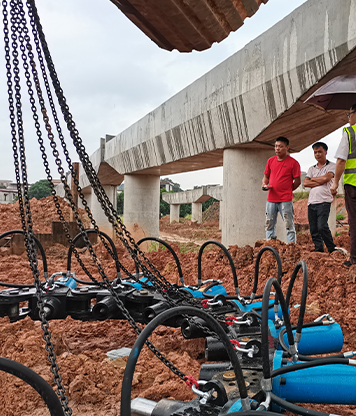

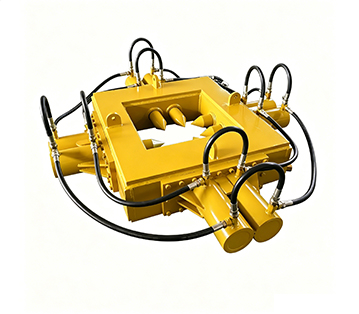

The hydraulic pile breaker is a high-efficiency attachment for excavators, designed to remove pile heads quickly and cleanly. It uses hydraulic cylinders to drive steel chisels that simultaneously compress and break the pile body. Suitable for cast-in-place piles and precast piles, it is widely used in bridge construction, high-speed rail foundations, and civil building projects.

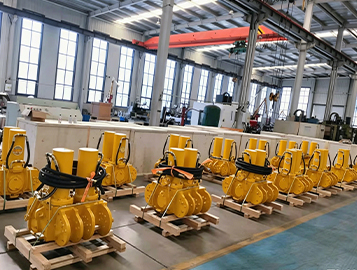

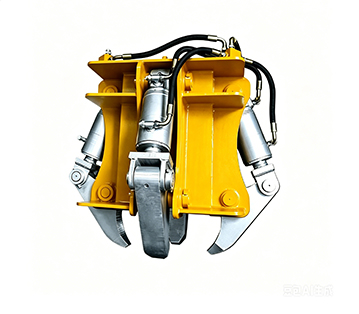

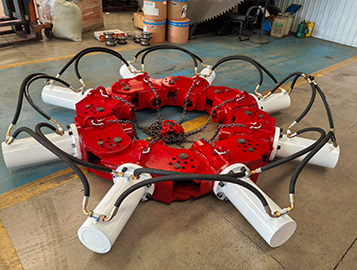

The module is the core component of the pile breaker. By freely combining different numbers of modules, the pile breaking requirements of different pile diameters can be matched.
| Module Qty | Total Weight | Pile Breaking Diameter |
Module Group OD |
Applicable Excavator Ton |
Recommended Pump Power |
| 4 pcs | 2160 kg | 400-600 mm | 2340 mm | 20-30 T | 15 KW |
| 8 pcs | 2430 kg | 600-800 mm | 2540 mm | 20-30 T | 15 KW |
| 9 pcs | 2700 kg | 800-980 mm | 2720 mm | 20-30 T | 15 KW |
| 10 pcs | 2970 kg | 980-1150 mm | 2890 mm | 20-30 T | 15 KW |
| 12 pcs | 4550 kg | 1300-1500 mm | 3240 mm | 30-40 T | 22 KW |
| 14 pcs | 5250 kg | 1650-1800 mm | 3740 mm | 30-40 T | 22 KW |
| 15 pcs | 5600 kg | 1800-1970 mm | 3910 mm | 30-40 T | 30 KW |
| 16 pcs | 5950 kg | 1970-2200 mm | 4140 mm | 30-40 T | 30 KW |
| 18 pcs | 6300 kg | 2350-2500 mm | 4440 mm | 30-40 T | 30 KW |
Add or remove modules according to pile diameter, reducing costs and increasing flexibility.
Prevents soil accumulation, avoiding drill jamming or breakage.
Thickened plates and optimized structure to prevent breakage under pressure.
Single module lifts up to 60 tons, ensuring fast pile breaking.
Environmentally friendly and safe for urban and residential construction.

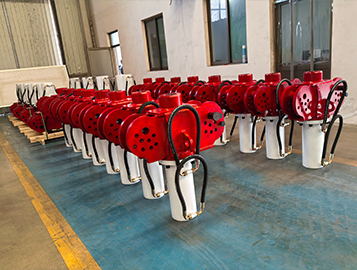

Yugong Factory Display
