Concrete pump uses pressure to continuously transport concrete through pipelines for housing, bridge, tunnel, and water conservancy projects. Our S-valve pump features a three-circuit hydraulic system and wear-resistant parts, suitable for fine stone concrete, mortar, and lightweight foam concrete. It enables high-efficiency, long-distance, and high-rise delivery for secondary grouting, floor heating, foundation reinforcement, and tunnel backfill.
| Model | Power | Capacity | Max Aggregate Size |
Vertical Conveying Height |
Horizontal Conveying Distance |
Pipe Diameter |
| YG-20 | 22kW | 8-12m³/h | 0-2cm | 40-50m | 80-100m | 80-100mm |
| YG-30 | 37kW | 13-15m³/h | 0-3cm | 20-60m | 50-150m | 80-125mm |
| YG-40 | 45kW | 20-25m³/h | 0-4cm | 30-130m | 50-350m | 80-125mm |
| YG-50 | 55kW | 30-35m³/h | 0-4cm | 30-150m | 50-500m | 80-125mm |
| YG-60 | 90kW | 55-60m³/h | 0-5cm | 30-150m | 50-500m | 125mm |
S Valve Distribution System
Suitable for small aggregate concrete and mortar, stable and smooth conveying.

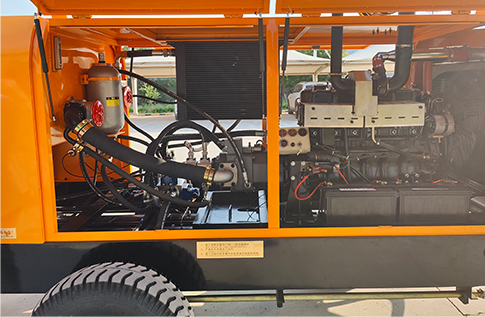

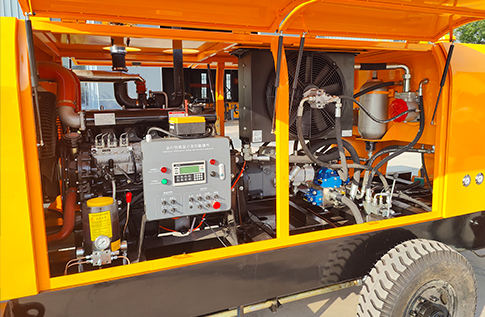

High Efficiency Hydraulic System
Independent three-circuit control, dual-cylinder piston structure, strong pressure and high efficiency.
Super Wear Parts
Wear-resistant alloy spectacle plate and cutting ring, service life 3 times longer than traditional parts.
Wireless Remote Control
Remote operation up to 1000 meters, safe and convenient.

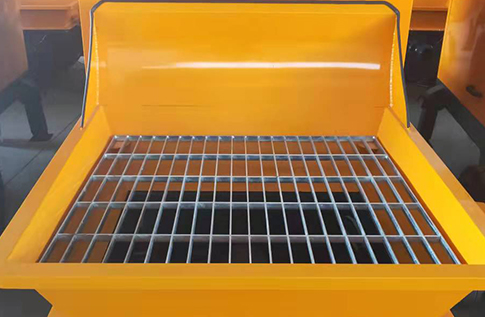

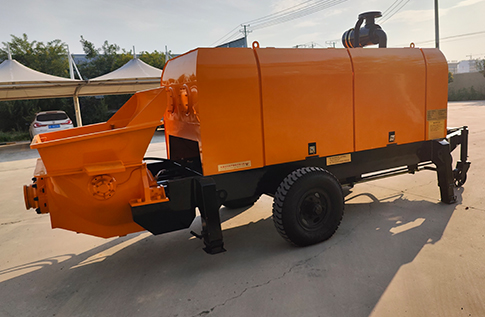

Large Inclination Hopper
High material suction efficiency, not easy to block.
Intelligent Control
PLC control, stepless displacement adjustment, high & low pressure switching.

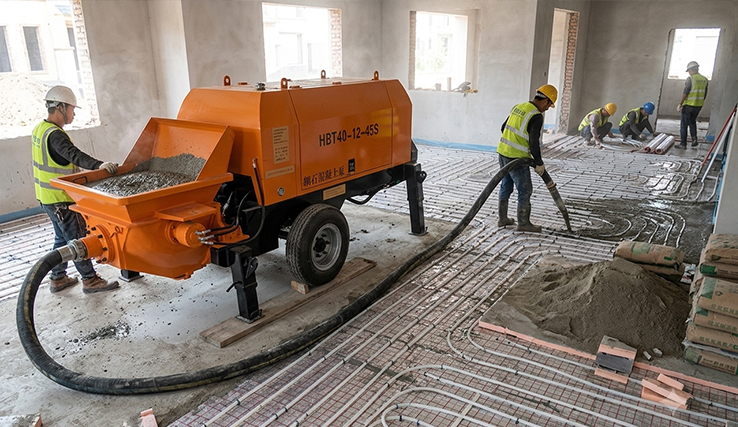

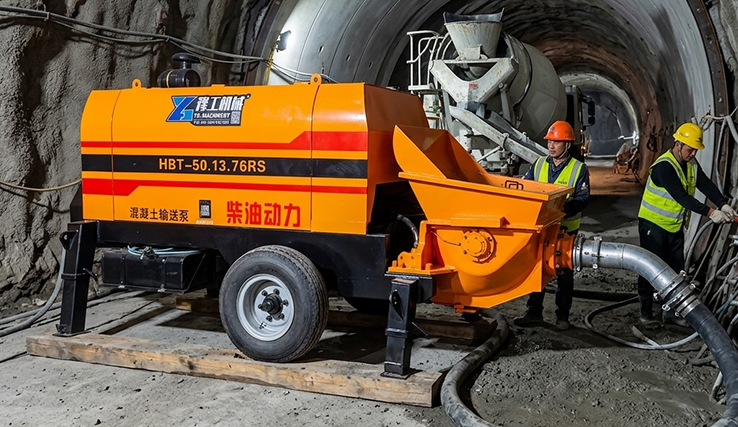

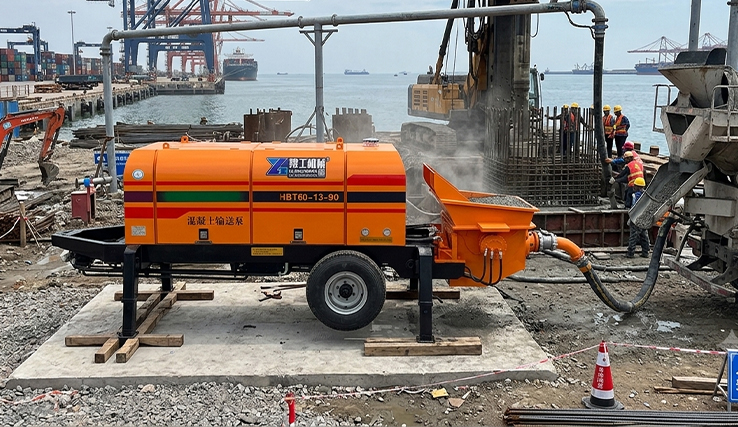

It can efficiently transport concrete over long distances and at high altitudes, and is suitable for projects such as secondary grouting, underfloor heating, foundation reinforcement, and tunnel backfilling.
